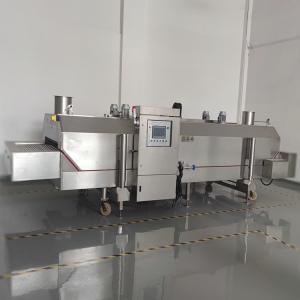

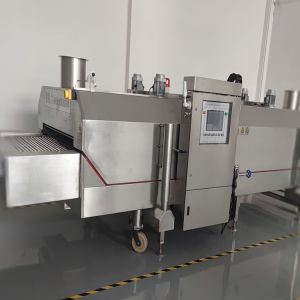

Minus 120c Liquid Nitrogen Tunnel Freezer Commercial Blast Chiller 2000kg/H 2500kg/H

Ask Lasest Price
Brand Name :	DJL
Certification :	ISO9001 ce
Supply Ability :	20 Set/Sets per Year
Price :	Negotiable
Model Number :	DJL-QFL-1212
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :	30-45 working days

Add to Cart

Product Details
Company Profile

Minus 120c Liquid Nitrogen Tunnel Freezer Commercial Blast Chiller 2000kg/H 2500kg/H

Cooling Tunnel Blast Freezer Industrial French Fries Liquid Nitrogen Tunnel Freezer

Product description

1. Inlet port 2. outlet port 3. circulating fan 4. wirebelt transport system

5. exhaust emission outlet 6. cleaning drainage 7. Electrical control cabinet

8. Elevator 9. Adjustable base

Specification

Model	Tunnel length	Wire belt width	Tunnel height	Power	freezing capacity
Model	(mm)	(mm)	(mm)	(KW)	(kg/h)
DJL-QFL-1206	6000	1200	1750	10	400-600
DJL-QFL-1209	9000	1200	1750	12	800-1000
DJL-QFL-1212	12000	1200	1750	18	1000-1200
DJL-QFL-1609	9000	1600	1750	15	1000-1200
DJL-QFL-1612	12000	1600	1750	28	1800-2100
DJL-QFL-1618	18000	1600	1750	32	2000-2500
DJL-QFL-1815	15000	1800	1750	28	2000-2500
DJL-QFL-1818	18000	1800	1750	32	2200-2800
DJL-QFL-1824	24000	1800	1750	46	2800-3500

Minus 120c Liquid Nitrogen Tunnel Freezer Commercial Blast Chiller 2000kg/H 2500kg/H

Liquid nitrogen quick freezing system diagram

1. liquid nitrogen freezing tunnel

2. liquid nitrogen tank

3. tank base

4. exhaust duct

5. exhaust fan

6. liquid nitrogen pipeline

Equipment material:	SUS304 stainless steel
Working temperature:	-150℃~room temperature
Temperature control precision:	±2℃
Temperature uniformity:	±5℃
Cooling rate:	≥20℃/min
Heating rate:	≥5℃/min
Distribution specification:	380V/50HZ

Our Advantages

1. More than 10 years of professional recognition for ultra-low temperature deep cooling ,own independent intellectual property rights with more than 10 patented technologies.

2. The ability of compound innovation and multi-technology integration makes DJL unique in freezing machine industry.

3. Personalized scheme provides you the best cost performance of product

4. Close cooperative relationships with many universities

5. Three minutes quick-freezing ,the temperature low to minimum -196℃

6. Reasonable &exclusive quick-freezing total solution maximize utilize/save customers cost.

7. Free experiment and verification supporting .

8. Better serving customers by setting up branches and offices in country's areas
